RIZIN（雷刃）
Gelande snow groomer
This new model is equipped with a Tier 4 Final engine.
It has the strongest climbing ability, and its overwhelming performance surpasses other existing medium-size models.
The tiller performance has been greatly improved by the introduction of patented new technology.
The new “MAS blade” and “ART tiller” completely overcome the weak points and realize a perfect finish in every snow situation.
All operators who engage in slope maintenance and those who enjoy snow activities will be satisfied with the performance of the RIZIN.
 New front and rear lamps ・LED lamp (high illumination/ high durability/ high visibility) |
 New side lamps ・Side lamp (improved view in poor visibility) |
 New engine ・Scania (high torque and high output at low rotation) |
 New driver seat ・Seat (wide width adjustment/ secures good view/ alleviates fatigue) ・Air suspension (reduced vibration / alleviates fatigue) |
 New wheel ・BBS (forged aluminum alloy/ lightweight reinforced) |
 New tracks ・New track plates(tip grip/ lightweight high rigidity/ height extension) ・Rubber belt(widened width) |
【MAS Blade】
The wings of MAS blade are wider than those of conventional snow removal blades. It holds and passes snow easily, enabling to construct desired shapes in the park.
Also, the improved control system is easy to use, allowing every operator to manipulate the blade at will.
※RIZIN comes equipped with a park blade as standard.
【ART Tiller】
This ART tiller can handle snow in every snow condition by changing the cross-sectional shape of the tiller case. It reduces the load by 30% compared to that of the existing tiller, and changing the setting helps vehicle’s propulsion, contributing to fuel saving.
|
Hard snow
 |
Soft snow
 |
| RIZIN（雷刃） | |||
|---|---|---|---|

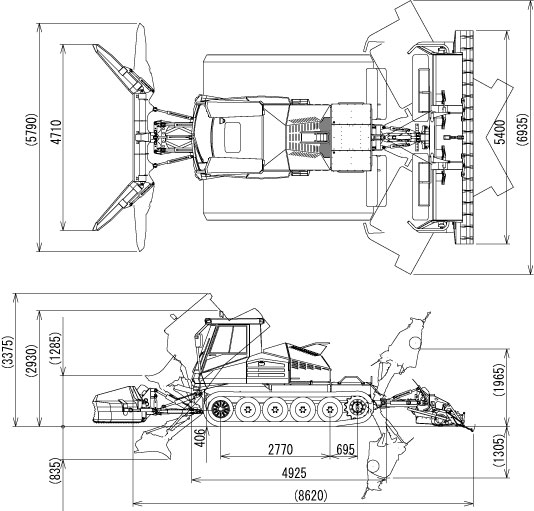

| Measurement (mm) | Length | Vehicle Body | 4,925 |
| With Front and Back Operating Equipment | 8,620 | ||
| Width | Vehicle Body | 4,192 | |
| With Snow Removal Blade | 5,790 | ||
| With Flex Rotor | 5,400 | ||
| Height | Cabin Upper Parts | 2,745 | |
| Search Light Upper Part | 2,930 | ||
| During Cabin Tilt | 3,375 | ||
| Carrier | Length | 1,000 | |
| Width | 1,700 | ||
| Height | 1,125 | ||
| Minimum Ground Clearance | 406 | ||
| Tread | 2,332 | ||
| Track Width | 1,650 | ||
| Weight（kg） | Vehicle body mass | 7,550/td> | |
| Working equipments (blade, tiller) | 1,950 | ||
| Gross vehicle mass (oil, fuel included) | 9,500 | ||
| Ground Contact Pressure Mpa（kg/cm²） | 0.0065（0.067） | ||
| Engine | Name | SCANIA | |
| Model | DC09 085A | ||
| Engine capacity（L） | 9.3 | ||
| Maximum Output kW（pS）/rpm | 257（350）/1,500～2,100 | ||
| Maximum Torque Nm（kgf・m）/rpm | 1,800（184）/1,300 | ||
| Starter（V-Kw） | 24-6.0 | ||
| Alternator（V-A） | 24-100×2 | ||
| Fuel Tank Capacity（L） | 225 | ||
| Battery（V-Ah） | 12-140Phase × 2 | ||
| Power Transmission System | Drive System | HST | |
| Steering Handle | Armrest lever (center post handle) | ||
| Brake | Main Brake | Hydrostatic brake | |
| Parking Brake | Multi-disc hydraulic brake | ||
| Performance | Running Speed（km/h） | 0～20（Single Step） | |
| Maximum Work Capacity（m²/h） | 108,000 | ||
| Hill Climbing Capacity（Depends on road surface adhesion） | 84％、40°(According to engine specification) | ||
| Minimum Turning Radius（m） | 0（Pivot Turn） | ||
| Fuel（L/h） | 18 | ||
| Main equipment | Crawler track | Steel tracks (hard snow/ soft snow) | |
| Lamps | Halogen + LED light | ||
| Tiller | Tri-flex (straight) | ||
| Drive shaft | Adapted to hard snow and soft snow | ||
| Adjustable regulator | Hydraulically adjustable | ||
| Cabin | ROPS structure | ||
| Environmental performance | Noise Reduction /Vibration Reduction /Tier 4 Final | ||
- ●Contents of this data are as at April 2016。
- ●Due to product improvement, specification may change without notice.
- ●Scania is registered trademark of SCANIA GROUP.
